Stallion Mustang Family 19.6 ft Full Off Road
Overview
Stallion Mustang Family 19.6 ft Off Road Double Bunk en-suite caravan
Great floor plan for a family that wants a more compact but still spacious double bunk van with a huge en-suite.
Made in Australia by a company with 25 years of manufacturing experience.
Attention to detail and durability is priority with Stallion caravans.
Loaded with features to make the caravan holiday experience fun and easy in style.
Drive-Away $92399
Caravan Length:
19.6ft
TARE:
2650 kgs
Sleeping Capacity:
4
Enquire
Specifications
Chassis
| Suspension | Cruisemaster XT Offroad |
| Chassis | Road King 6″ Chassis |
| Axles | Double |
| Hitch | Do35 |
| Draw Bar | Extended |
| Tyre | 265/75/16 |
| Bumper Arms | 3 Arms |
| Raiser | 2inch |
| Toolbox | Double Slide |
| Spare Wheels | 1 |
| Brake Type and Size | 12″ Drum |
| Jerry Cans | 1 |
External
| Window Type | Clear Double glazed w/ 2 flyscreeen/blinds |
| Awning Type | Rollout Aussie Traveller |
| Picnic Table | 1 X Drop Down |
| Roof Hatches | 1x very large and 1x standard led light roof hatches |
| Step | Double Step |
| Jack | Yes |
| Frame Construction | CNC Ply Board |
| Floor Material | One Piece Floor |
| Cladding | Alicom |
| Checker Plate Height | 600mm |
| Main Entrance Door | Aussie Traveller Midge Proof |
| Entrance Door Position | Mid Door |
Appliances
| Fridge | Dometic 220 ltr Compressor |
| Oven | 3 Gas / 1 Electric cook top, griller and oven |
| Rangehood | Yes |
| Microwave | 25 Litre Flat Bed |
| Washing machine | No |
| Stereo | Furrion |
| Air Con/Heating | Truma Aventa |
| Fans Main | 1 |
| Fan Each Bunk | 1 |
| Tv | Google Smart 24″ |
| Aerial | Milenco |
Internal
| Berth | 4 Or 5 |
| Mattress Type | Pillow top inner spring |
| Bed | Queen Island |
| Wardrobes Main Bedroom | Shelves and Pigeon Hole |
| Wardrobe Ensuite | No |
| Entrance Door | Middle |
| Shower | Apex RV Fibre Glass Free |
| Toilet | Thetford Ceramic C263CS |
| Tunnel Boot | Front Large |
| Soft Close Drawers | Yes |
| Concealed Hinges | Yes |
| Concealed Gas Struts | Yes |
Electrical
| Solar Panels | 3x 200 watt Arizon |
| Batteries | 2x 100 amp Baintech 5 year warranty Lithium batteries |
| Charger | Victron-AC Charger 30A + DC-DC 12/12/30 |
| Solar Controller | Victron-MPPT 100/50 |
| Control Panel Monitor | Victron-Smart Battery Monitor and Shunt BMV-712 |
| External Speakers | 2 |
| Reverse Camera | Safety Dave AHD |
| External Lights | Allround |
| External Tunnel Boot Light | Yes |
| External Entertainment Box | Yes |
| External Entertainment | TV aerial, 240v, 12V Connections Only |
| Reading Lights | Yes with USB Port |
| Main Room Pigeon Holes | 240 12v access points |
| Anderson Plug Car Charge | Yes |
| Entrance Light Grab Handle | Illuminated |
| LED Strips | Yes |
| Brake Safe | Yes |
Plumbing
| External Shower | Yes |
| Filtered Water Tap | Yes |
| Gas Bottles | 2x 9ltr |
| Fresh Water Tanks | 2x 110 ltr |
| Grey Water Tank | 1x 95ltr |
| Hot Water System | Gas and Electric Tank |
| Water Pumps | 1 |
| Water Tank and Tap Protection | Aluminum Checker Plate |
| Gas Bayonet | 1 |
Measurements
19.6 ft van cabin
7900mm overall length from hitch to rear of spare wheels
3150mm overall height
2350mm overall width
Tare Weight – 2650 kgs
ATM — 3500kgs
Ball load – 180 kgs

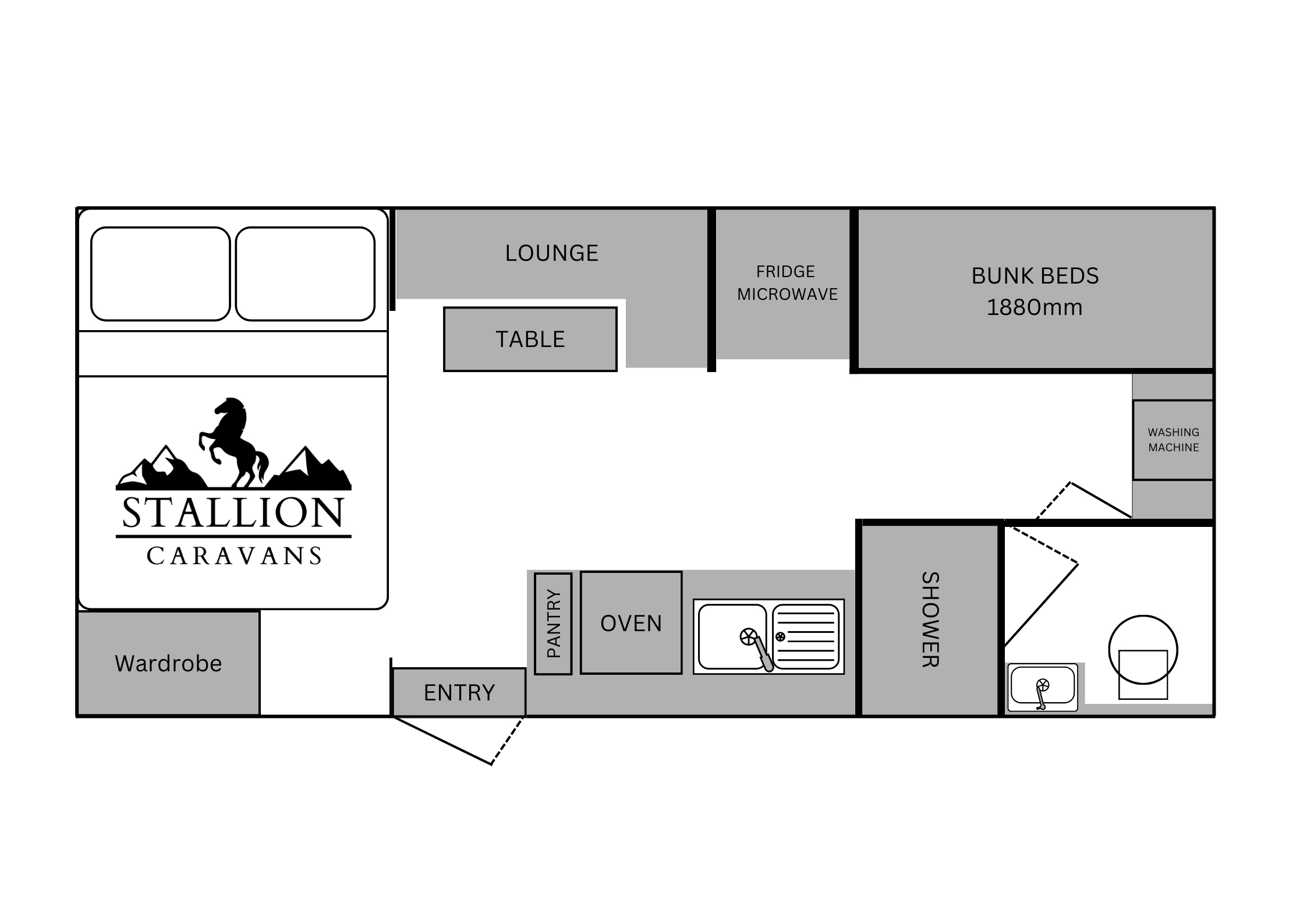

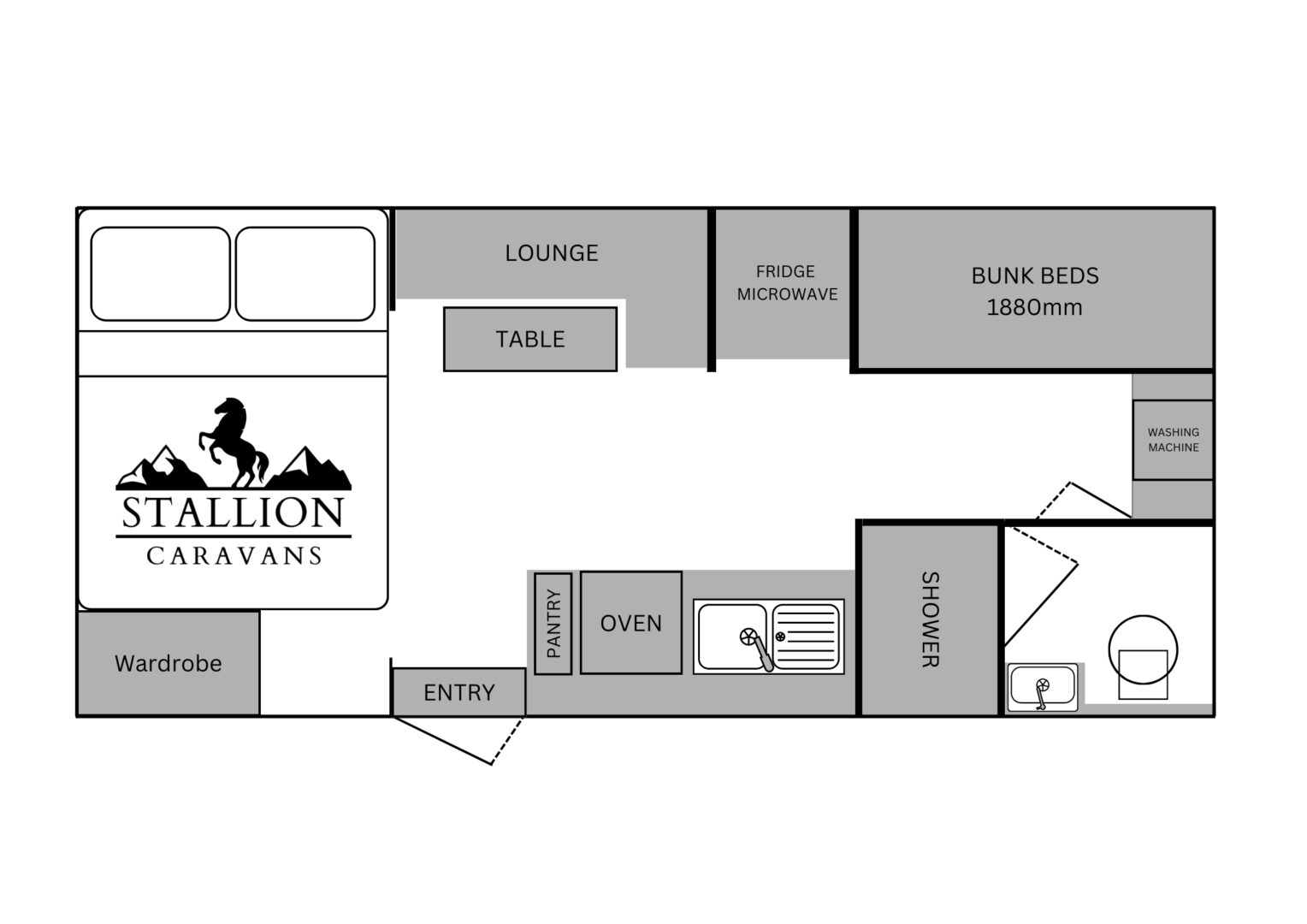

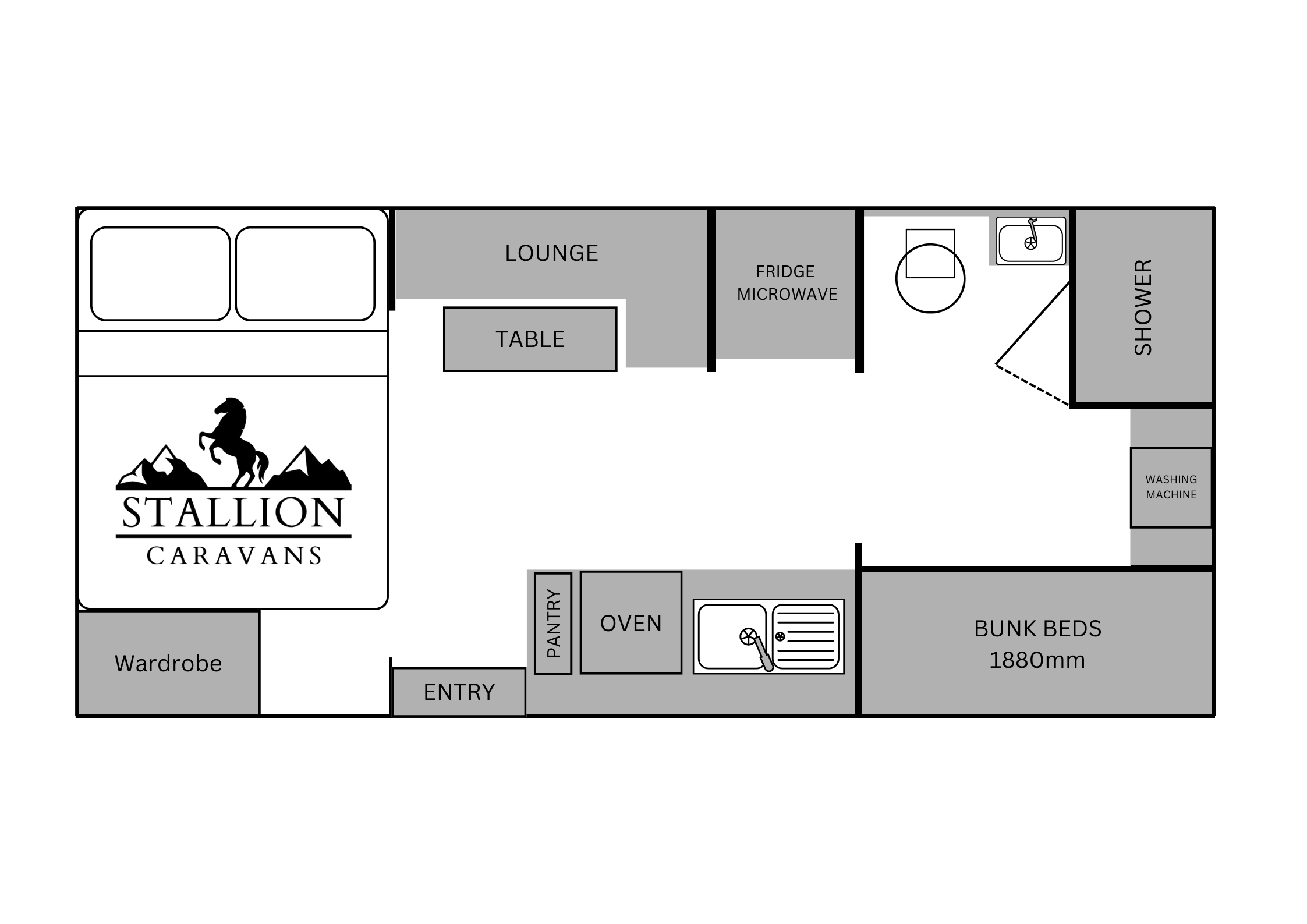

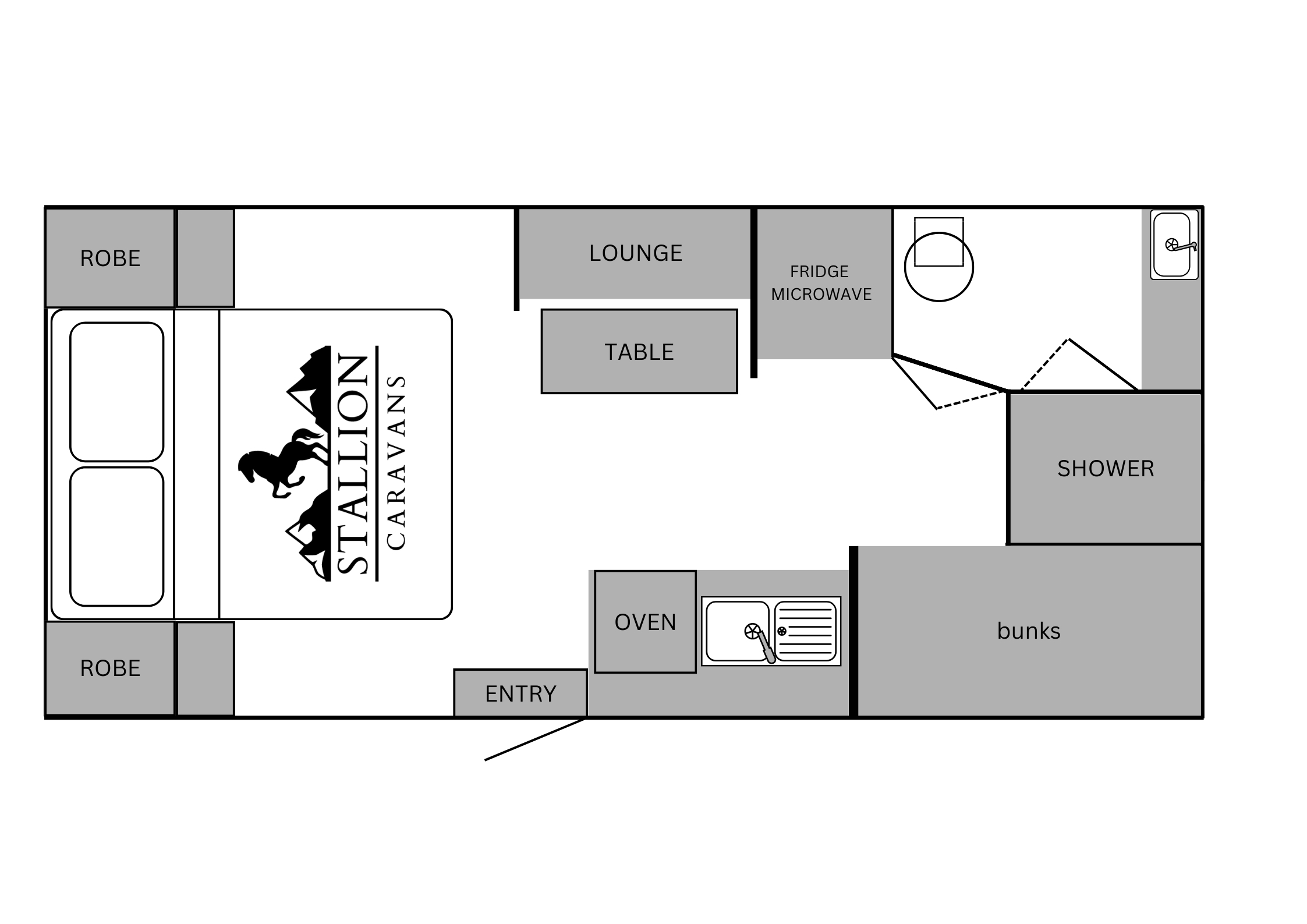

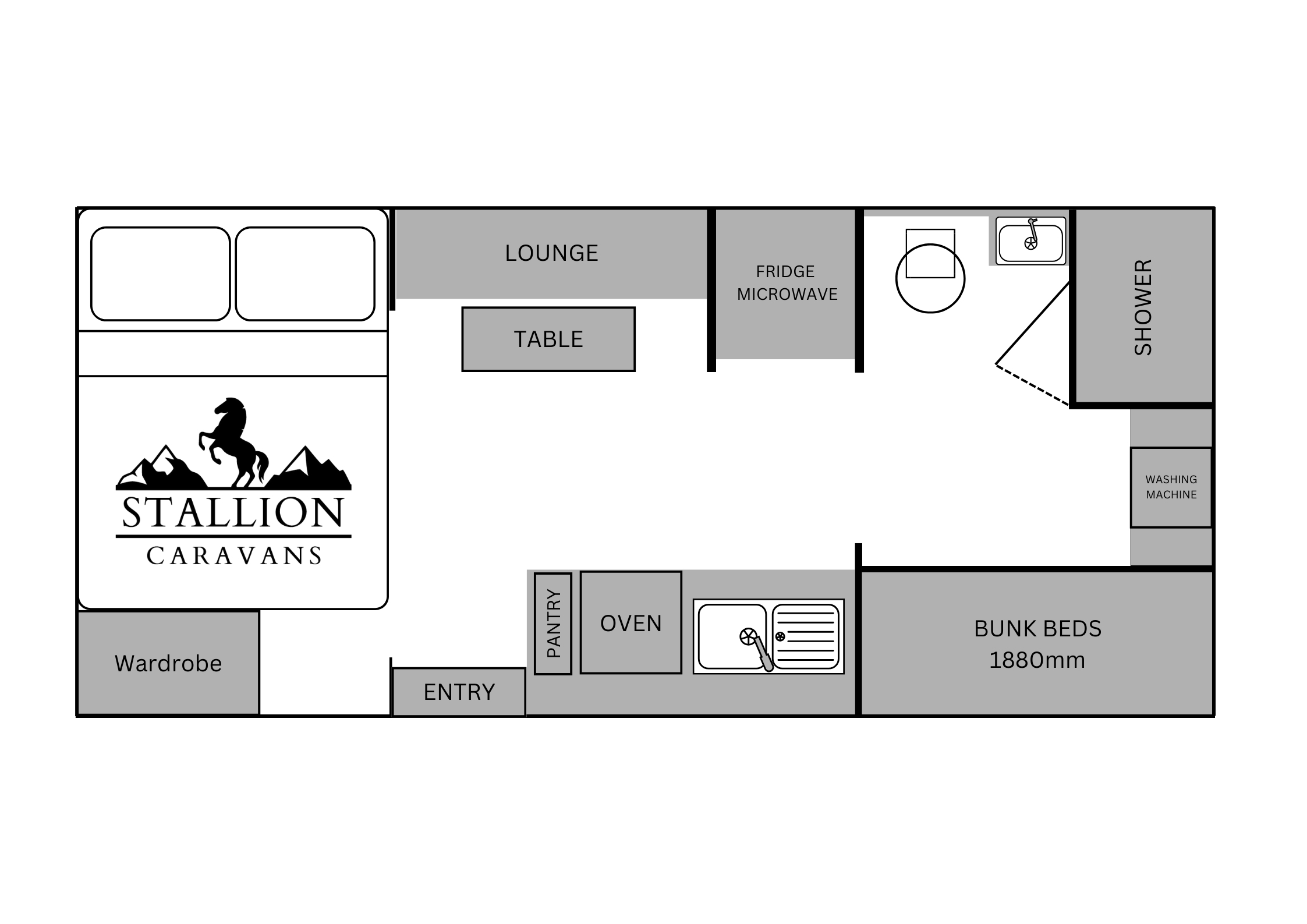

Floor Plan Options
